Tracked Ck-300 Remote Control Gasoline Wood Chipper

Tracked CK-300 Remote Control Gasoline Wood Chipper is a drum chipper with track system, compact machine for chipper branches up to 10 cm in diameter, organic products both dry and wet. The new chipper CK-300 is equipped with a caterpilla base. With this new accessory it will be able to move on any terrain and load and unload the wood chipper from their vans in total autonomy. The machine with the most 'high productivity in its class, with two large rotor blades reversible steel long-term before their sharpening.
Thanks to the design of the rotor, branches, twigs and cuttings are dragged automatically inside without the aid of driving rollers. The centrifugal force created by the rotor ejects the shredded material in fine chips, projecting out from the exhaust, allowing easy loading in a container or trailer. The workload is about 800-1000KG per hour
Availability:
Quantity:
  • CK-300

  • EUROSTAR OEM

  • 8465960000

Tracked CK-300 Remote Control Gasoline Wood Chipper

Tracked CK-300 Remote Control Gasoline Wood Chipper is a drum chipper with track system, compact machine for chipper branches up to 10 cm in diameter, organic products both dry and wet. The new chipper CK-300 is equipped with a caterpilla base. With this new accessory it will be able to move on any terrain and load and unload the wood chipper from their vans in total autonomy. The machine with the most 'high productivity in its class, with two large rotor blades reversible steel long-term before their sharpening.
Thanks to the design of the rotor, branches, twigs and cuttings are dragged automatically inside without the aid of driving rollers. The centrifugal force created by the rotor ejects the shredded material in fine chips, projecting out from the exhaust, allowing easy loading in a container or trailer. The workload is about 800-1000KG per hour

Tracked CK-300 Remote Control Gasoline Wood Chipper Parameter

Tracked CK-300 Remote Control Gasoline Wood Chipper
Model CK-300
Power Type Gasoline/Diesel
Start Mode Electric Start
Output Power 7.5kW/8kW/9.2kW
Cutterhead diameter 230mm
Cutterhead speed 3400rpm
Working diameter range 10-100mm
Workload per hour 800-1000Kg/h
Blade specifications A8-295*55*8
Dimensions 1800*670*1300mm
Total Weight 244Kg
Movement method Remote control self- propelled
Battery or cable specifications 24V20AH 12V20AH
Maximum walking speed 0-6KM/H
Tire Size Track 150*60*57

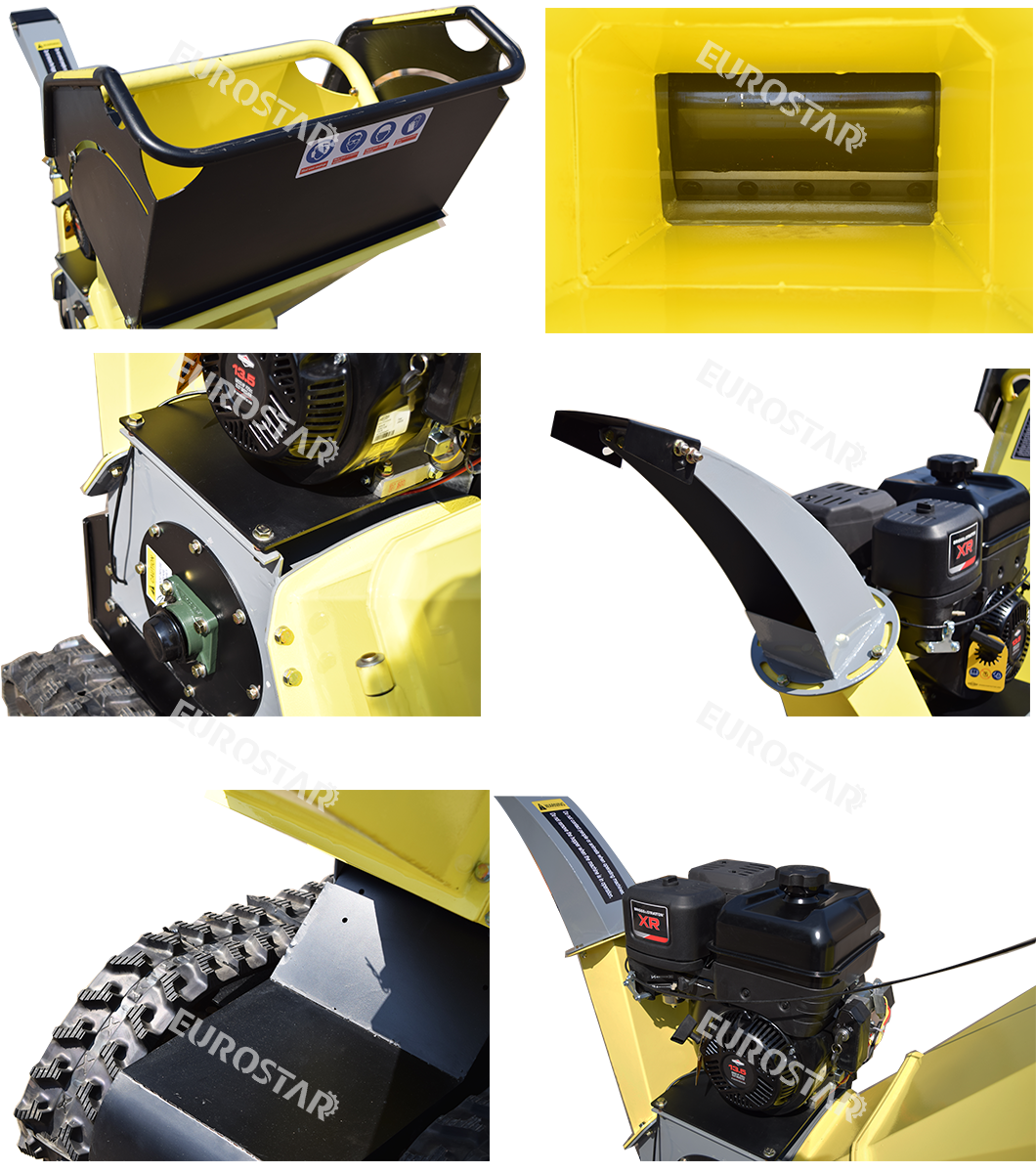

Tracked CK-300 Remote Control Gasoline Wood Chipper Details

Tracked CK-300 Remote Control Gasoline Wood Chipper detail

Tracked CK-300 Remote Control Gasoline Wood Chipper Structural diagram

Related products

wood shredder-1

YL- 22 Gasoline Leaf Shredder

YL- 22 Gasoline Leaf Shredder details


Model

YL-22
Power Type Gasoline 190F
Start Mode Manual
Output Power 8kW/4.5kW
Cutterhead diameter 344mm
Cutterhead speed 3600rpm
Working diameter range 10-50mm
Blade specifications 120x34x4.6  2 pieces
305x50x5 1 piece
Feed port size 48x42mm
Dimensions 1100x780x705 mm
Total Weight 84Kg
Movement method Manual traction
Battery or cable specifications None
Maximum walking speed Pace speed
Workload per hour 300-600Kg/h
Optional Gasoline177F

TL-CK300 Wood Chipper

TL-CK300 gasoline Wood Chipper-details

Model TL-CK300
Power Type Gasoline 190F
Start Mode Electric Start
Output Power 8kW
Cutterhead diameter 230mm
Cutterhead speed 3400rpm
Working diameter range 10- 100mm
Workload per hour 800-1000Kg/h
Feed port size 60x60mm
Blade specifications A8-295x55x8mm
Dimensions 2500x950x1300 mm
Total Weight 176 Kg
Movement method Locomotive pulling
Battery or cable specifications 12V20AH
Maximum walking speed 0-40km/h
Tire Size 400-8
Optional Diesel 190F
Diesel 192F

Q-170 Q-200 Wood Chipper

Q-200 Wood Chipper detail

Model Q-170
Power Type Gasoline 170F
Start Mode Manual
Output Power 8HP
Cutterhead diameter 180 mm
Cutterhead speed 2900rpm
Working diameter range 10-50mm
Workload per hour 400-600 Kg/h
Feed port size 400x1100x500
Discharge port size 150x800x100mm
Dimensions 1100x600x1660 mm
Total Weight 90 Kg
Optional Gasoline 170F Electric Start
Diesel 173F Manual Start
Diesel 173F Electric Start

Model Q-200
Power Type Gasoline 190F
Start Mode Electric Start
Output Power 11HP
Cutterhead diameter 230 mm
Cutterhead speed 3400rpm
Working diameter range 10-100mm
Workload per hour 400-800 Kg/h
Feed port size 520x580mm
Discharge port size 880x220x100mm
Dimensions 1400x600x1100 mm
Total Weight 140 Kg
Optional 3 knives

C-200 C-300 Diesel Horizontal Branch Grinder

C-200 C-300 Diesel Horizontal Branch Grinder


Model C-200
Power Type Diesel 190F
Start Mode Electric Start
Output Power 13HP
Cutterhead diameter 230 mm
Cutterhead speed 3400rpm
Working diameter range 10-800mm
Workload per hour 700-900 Kg/h
Blade specifications A8-195*55*8
Dimensions 1500*600*1200 mm
Total Weight 160 Kg
Feed port size 520x580mm
Discharge port size 880x220x100mm
Movement method Manual traction
Battery or cable specifications 36A-12V
Maximum walking speed Pace Speed
Tire Size 500-6
Optional Diesel 190F, 3 knives
Diesel 192F
Diesel 192F, 3 knives
Model C-300
Power Type Diesel 190F
Start Mode Electric Start
Output Power 15HP
Cutterhead diameter 230 mm
Cutterhead speed 3400rpm
Working diameter range 10-1000mm
Workload per hour 900-1200 Kg/h
Blade specifications A8-295*55*8
Feed port size 600x700mm
Discharge port size 900x320x100mm
Dimensions 1550*700*1200 mm
Total Weight 185 Kg
Movement method Manual traction
Battery or cable specifications 36A-12V
Maximum walking speed Pace Speed
Tire Size 500-6
Optional Diesel 192F, 2 knives
Diesel 195F, 2 knives
Diesel 190F, 3 knives
Diesel 192F, 3 knives
Diesel 195F, 3 knives

BX Series PTO drive wood pulverizer

BX Series PTO drive wood pulverizer show

Model BX42S BX42R BX62S BX62R BX72R BX92R
Chipper Capacity 100mm 100mm 150mm 150mm 175mm 200mm
Diameter of blade 630mm 630mm 740mm 740mm 740mm 940mm
Thickness 18mm 18mm 25mm 25mm 28mm 32mm
Rotor plate weight 44kg 44kg 86.5kg 86.5kg 86.5kg 171kg
Rated RPM 540-1000 540-1000 540-1000 540-1000 540-1000 540-1000
Quantity of blade 4 4 4 4 4 4
Knife Type 65-Mn/A8 65-Mn/A8 65-Mn/A8 65-Mn/A8 65-Mn/A8 65-Mn/A8
Dimension of blades 210x60x9mm 210x60x9mm 240x60x9mm 240x60x9mm 280x80x12mm 320x100x17mm
Feed port size 520x520mm 520x520mm 620x620mm 620x620mm 830x600mm 620x620mm
Feeding System Feed / Hydraulic Feed / Hydraulic Feed Hydraulic Feed Hydraulic Feed
Discharge port size 100mm 100mm 150mm 150mm 200mm 220mm
Size of chippers =6mm ≤6mm ≤6mm ≤6mm ≤9mm ≤9mm
Packing size 1140x910x1240 1140x810x1920 1230x1000x1160 1220x910x1930 1690x1130x1380 1210x1130x2000
Overall size 1470x1260x1650 1560x1800x1800 1720x1300x2200 2100x1680x2100 2100x1300x2100 2000x1980x2520
Mass weight 251kg 405kg 383kg 557kg 617kg 783kg
Drive power tractor PTO tractor PTO tractor PTO tractor PTO tractor PTO tractor PTO
Matched HP 25hp-50hp 35hp-60hp 35hp-60hp 60hp-100hp 60hp-100hp 75hp-120hp
One 40HQ 52 units 56 units 26 units Mix to save space Mix to save space 18 units

EC Series Wood pulverizer

EC Series Wood pulverizer show


Model EC18 EC22
Engine type Diesel engine Diesel engine
power(HP) 18 22
Chipper capacity 6”diameter/  150mm
Feeding system Mechanical Roller feeding
Rotor plate size 600mm
Rotor plate weight 83kg
Knives number 1 stationaryknife:2rotor knives
Dimensions(Hopper
discharge)(mm)
1300×1400×1100
Feed Hopper inner
Opening (mm)
200 x 220
Discharge Hood Height 1800
Rated RPM 1080
Weight 680kg

YL-50 Remote Control Crawler Lawn Mower

YL-50 Remote Control Crawler Lawn Mower details


Model YL-50
Power Type Four-stroke Diesel 178F
Fuel Tank Capacity 3.5 Liters
Start Method Electric start + hand pull
Standard Fuel Consumption 1.2 Liters/hour
Number of Blades 10x3 Pieces
Power Generation 1500W
Motor Power 2x600W Brushless
Battery Specification 12V22.3A
Mowing Width 50 CM
Stubble Height 3-8 CM
Working Slope Less than 40 degrees
Mowing Height 5-150 CM
Remote Control Distance 400 Meters
Lifting Method Manual Adjustment
Track Width 150 MM
Complete Size 100x98x75 CM
Machine Weight 200 KG
